A Plus Series
- A Series performance—made more accessible.
Key Features
- Armor Coating
- Smart Module
- Front Access
- Energy Efficient
- Customizable
- High Gray Scale
- Ultra Light
- Fast Assembly
- IP65
A Plus Series Highlights

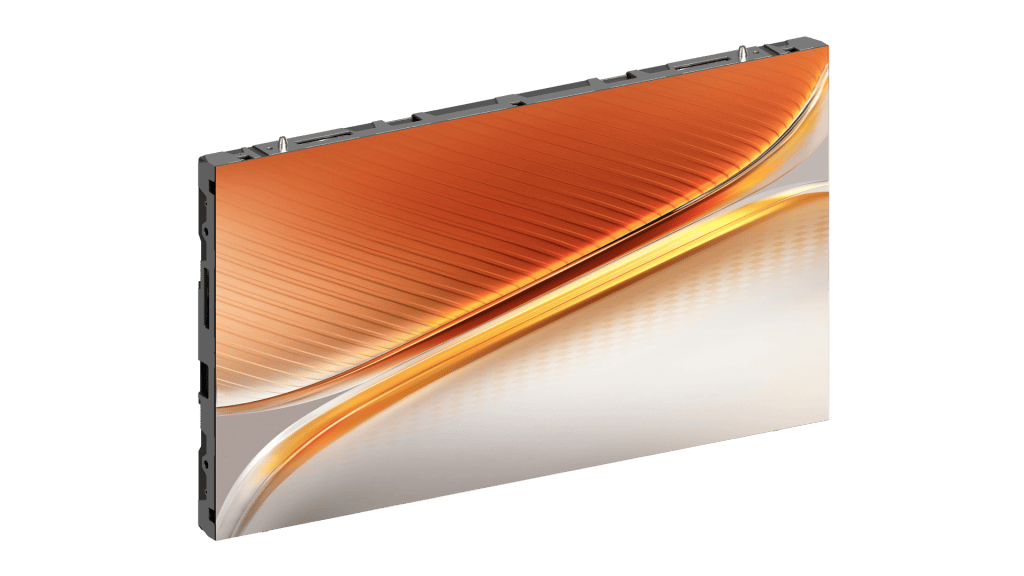

At only 0.11 ft thick and weighing just 8.6 lbs per module, the A Plus Series delivers an outstanding strength-to-weight ratio without sacrificing visual performance. Its slim profile makes it ideal for tight installations, wall-mounting, and architectural integrations where a clean, modern look is essential. The lightweight design speeds up installation and reduces overall structural requirements, providing more flexibility for system designers and end users.
With each pixel acting as its own independent light emitter, MicroLED technology produces exceptional clarity, deeper blacks, and stunning contrast for lifelike image reproduction. The A Plus Series delivers ultra-high contrast and DCI-P3 color coverage to ensure accurate, vibrant visuals across all content types. It’s engineered for environments where image precision truly matters.

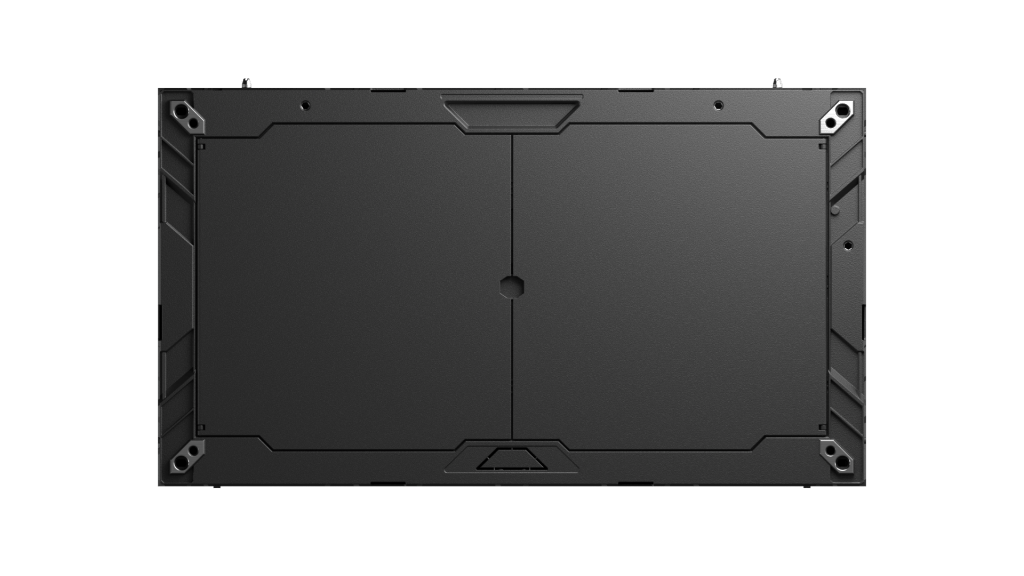

The A Plus Series supports full front and rear service, giving installers complete freedom in how the display is deployed. Its innovative rear double-door design allows access to internal components without removing modules, dramatically simplifying routine service. This dual-access approach reduces downtime, labor costs, and long-term maintenance complexity.
Featuring 0.98 ft × 0.55 ft modules, the A Plus Series reduces the total number of module pieces required, speeding installation and improving screen uniformity. Larger modules mean fewer seams, easier flatness adjustments, and a more efficient build process. The result is a smoother, more reliable visual surface in less time.
Build Your A Plus Series LED Display
We’ve built a custom LED screen builder that allows you to build out your display and get the exact specs and price estimate, instantly!
Specs from the A Plus Series
A Series
A Plus Series
| Specification | |||||
|---|---|---|---|---|---|
|
Pixel Pitch |
0.9mm |
1.2mm |
1.5mm |
1.8mm |
2.5mm |
|
Panel Dimension (W×H×D) |
1.97×1.10×0.11 ft. / 600×337.5×34.5 mm |
||||
|
Panel Resolution (W×H) |
320×180 |
240×135 |
192×108 |
160×90 |
120×64 |
|
Panel Weight |
8.6lbs |
||||
|
Avg. Power Consumption |
21 watts |
20 watts |
18 watts |
30 watts |
26 watts |
|
Max Power Consumption |
65 watts |
60 watts |
55 watts |
90 watts |
80 watts |
|
Brightness |
600 nits |
900 nits |
750 nits |
||
|
Refresh Rate |
3840Hz |
||||
|
Scan Mode |
1/80 |
1/60 |
1/48 |
1/45 |
1/40 |
|
Gray Scale |
13 Bit |
||||
|
Contrast Ratio |
10,000:1 |
||||
|
Access |
Front & Rear |
||||
|
Ingress Protection |
IP54 |
||||
|
Working Temperature |
-4°F~104°F |
||||
|
Storage Temperature |
-40°F~176°F |
||||
|
Power Supply |
100V~240V, 50-60Hz |
||||
