A Series
INDOOR LED
Overview
The A Series is our premier indoor LED product line. It features the latest in LED manufacturing advancements, and this combined with the highest quality components available allows us to offer you one the most state of the art LED video products on the market. The A Series can acheive custom configurations to fit your needs as well.
Sizes Available: 1.31x.98 ft (400×300 mm), 1.31×1.48 ft (400×450 mm), 1.97x.98 ft (600×300 mm)
- ARMOR COATING
- ENERGY EFFICIENT
- ULTRA LIGHT
- SMART MODULE
- CUSTOMIZABLE
- FAST ASSEMBLY
- FRONT ACCESS
- HIGH GRAY SCALE
- IP65

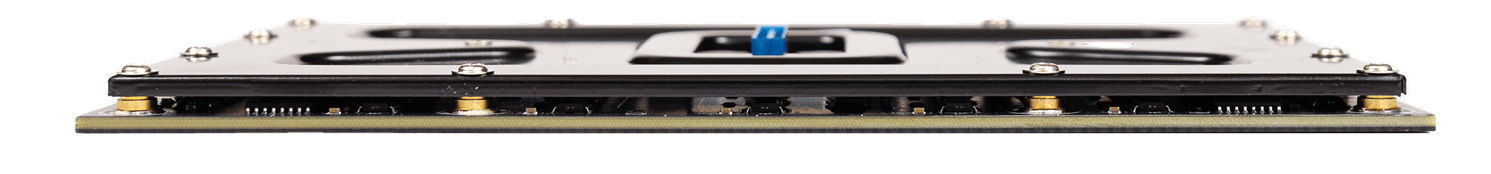

Flip Chip Technology
Flip Chip Technology is the latest improvement in how LEDs are manufactured. Traditional LEDs utilize wires to bond the LED to the chip, Flip Chip use a wireless bonding process. This eliminates broken wires, which is one of the biggest fail points with SMD LEDTechnology. This also allows for a more compact packaging process, which gives us the physcial room to focus on heat dissipation, allowing for a brighter and more efficient LED. This also provides a much more reliable and stable product overall, making it the best option in the market today.
High Contrast Ratio
Very Bright & Energy Efficient
Supports HDR10
Standard Dynamic Range
High Dynamic Range
Various Panel Sizes Available
We offer 3 different panel sizes in our A Series:
- 1.31’ x .98’/400mm x 300mm
- 1.31’ x 1.48’/400mm x 450mm
- 1.97’ x .98’/600mm x 300mm
This allows you more size options, the increased ability to meet a specific size, and offers more creativity with your LED screen designs. All sizes can be connected and use the same components which simplifies servicing and installation.
Download the CAD drawings
Size: 1.31’ x .98’ / 400mm x 300mm
| Specification | 4312A | 4316A | 4320A | 4325A | 4331A |
|---|---|---|---|---|---|
|
Pixel Pitch |
1.2mm |
1.6mm |
2.0mm |
2.5mm |
3.1mm |
|
Pixel Density |
640,000 |
360,000 |
230,4000 |
160,000 |
102,400 |
|
Panel Resolution |
320 x 240 |
240 x 180 |
192 x 144 |
160 x 120 |
128 x 96 |
|
Panel Weight |
11.5lbs |
||||
Size: 1.31’ x 1.48’ / 400mm x 450mm
| Specification | 4412A | 4416A | 4420A | 4425A | 4431A |
|---|---|---|---|---|---|
|
Pixel Pitch |
1.2mm |
1.6mm |
2.0mm |
2.5mm |
3.1mm |
|
Pixel Density |
640,000 |
360,000 |
230,4000 |
160,000 |
102,400 |
|
Panel Resolution |
320 x 360 |
240 x 270 |
192 x 216 |
160 x 180 |
128 x 144 |
|
Panel Weight |
16.1lbs |
||||
Size: 1.97’ x .98’ / 600mm x 300mm
| Specification | 6312A | 6316A | 6320A | 6325A | 6331A |
|---|---|---|---|---|---|
|
Pixel Pitch |
1.2mm |
1.6mm |
2.0mm |
2.5mm |
3.1mm |
|
Pixel Density |
640,000 |
360,000 |
230,4000 |
160,000 |
102,400 |
|
Panel Resolution |
480 x 240 |
360 x 180 |
288 x 144 |
240 x 120 |
192 x 96 |
|
Panel Weight |
15.4lbs |
||||
Overall Specs for the A Series
| Specification | Description |
|---|---|
|
LED Type |
Flip Chip LED 1010 |
|
Avg. Power Consumption |
9.29 watts/sq.ft. |
|
Max Power Consumption |
28 watts/sq.ft. |
|
Brightness |
200cd~6000 |
|
Refresh Rate |
Standard 1920; High 3840 |
|
Drive Mode |
Constant Current |
| Specification | Description |
|---|---|
|
Gray Scale |
14-16 bit |
|
Access |
Front Access |
|
IP Rating |
IP65 Front & Rear |
|
Working Temperature |
-4 F ~ +140 F |
|
Storage Temperature |
-13 F ~ +140 F |
|
Power Supply |
AC: 100V~240V, 50/60Hz |
