M Series
- The ultimate LED display for mobile applications.
Key Features
- Smart Module
- Energy Efficient
- Customizable
- High Gray Scale
- Ultra Light
- Fast Assembly
M Series Highlights

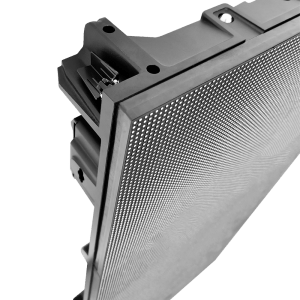

Foldable corner guards protect modules during transport and load-in. Front and rear maintenance access means your crew can service the wall from wherever the job allows — no teardown required.

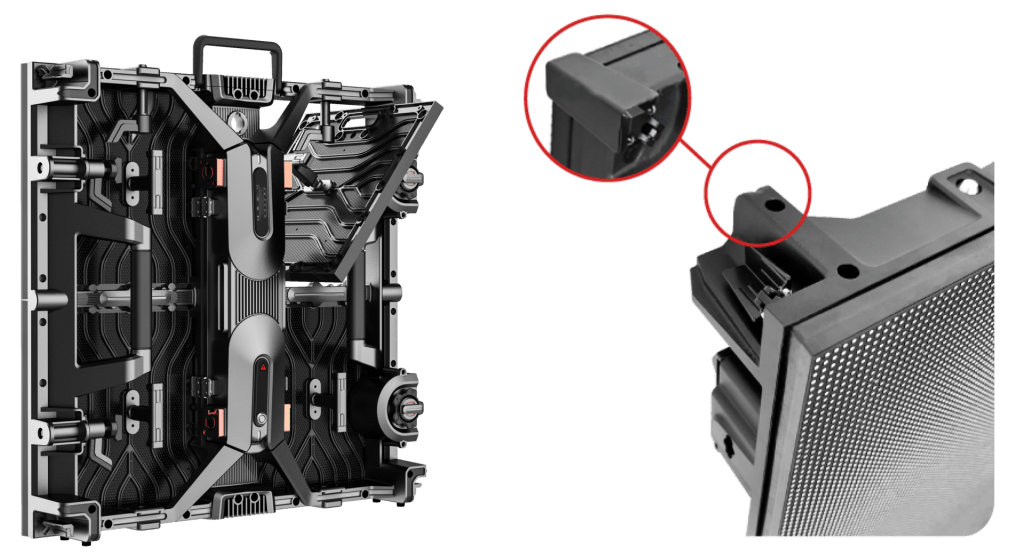

Built from high-strength die-cast aluminum, M Series cabinets deliver superior flatness across the display surface — critical for seamless, high-quality visuals at any scale.
Modules use a hard connection design for rock-solid structural integrity, while the magnetic attachment system makes installation and maintenance fast and straightforward.

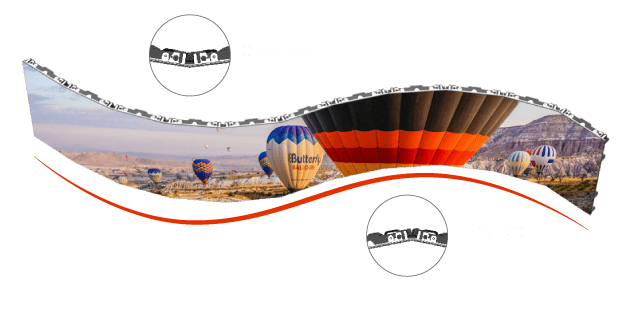

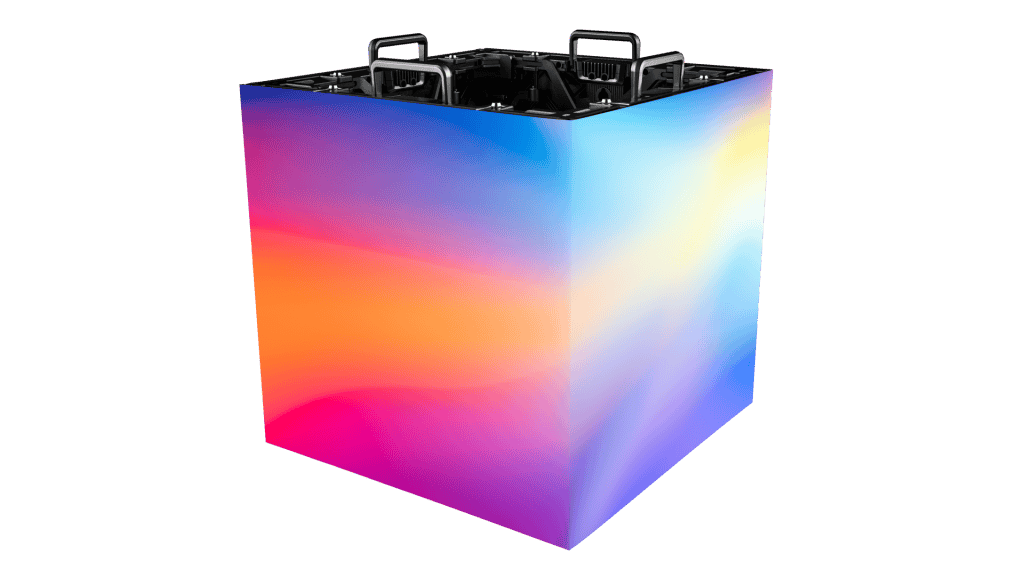

Available in 500×500mm and 500×1000mm cabinet sizes, the M Series supports mixed splicing between the two, plus right-angle and curved configurations for displays that go beyond a standard flat wall.
Build Your M Series LED Display
We’ve built a custom LED screen builder that allows you to build out your display and get the exact specs and price estimate, instantly!
Specs from the M Series
A Pro Series
A Plus Series
B Series
C Series
Smart Interactive Display
E Series
Flyer Series
M Series Indoor
| Specification | |||
|---|---|---|---|
|
Pixel Pitch |
2.6 mm |
2.9 mm |
3.9 mm |
|
Cabinet Dimension (W×H×D) |
1.64×1.64 ft / 500×500 mm |
||
|
Cabinet Resolution (W×H) |
192×192 px |
168×168 px |
128×128 px |
|
Cabinet Weight |
16.5 lbs |
||
|
Brightness |
600 nits |
||
|
Gray Scale |
18 Bit |
||
|
Contrast |
5000:1 |
||
|
Refresh Rate |
3840Hz |
||
|
Horizontal Viewing Angle |
120° |
||
|
Vertical Viewing Angle |
120° |
||
|
Access |
Front / Rear Access |
||
|
Ingress Protection |
IP20 |
||
|
LED Lifespan |
100,000 h |
||
|
Working Temperature |
14°F~122°F |
||
|
Storage Temperature |
-4°F~140°F |
||
|
Working Humidity (RH) |
10% ~ 80% RH |
||
|
Working Voltage |
100V~240V |
||
|
Max. Power Consumption |
170 watts |
||
|
Avg. Power Consumption |
70 watts |
||
