O Series
OUTDOOR LED
Overview
The O Series is purpose built for your outdoor LED needs. It features a high precision design with corrosion resistant aluminum-magnesium alloy frame. We offer a wide variety of pixel pitches and sizes making the O Series ideal for a number of different applications, including scoreboards, outdoor signage, advertising, digital architectural elements, outdoor venues, and more. If you need a high quality digital outdoor LED Display at a great value, the O Series is what you need.
Sizes Available:
3.15’ x 3.15’ (960mm x 960mm), 4.2’ x 3.15’ (1280mm x 960mm), and 2.1’ x 3.15’ (640mm x 960mm)
- ENERGY EFFICIENT
- ULTRA LIGHT
- SMART MODULE
- CUSTOMIZABLE
- FAST ASSEMBLY
- FRONT & REAR ACCESS
- HIGH GRAY SCALE
- IP65
Featuring Multiple Size Options & Pixel Pitches
We offer the O Series in three different sizes 3.15’ x 3.15’ (960mm x 960mm), 4.2’ x 3.15’ (1280mm x 960mm), and 2.1’ x 3.15’ (640mm x 960mm). The various size options can help when trying to target a specific display size or aspect ratio. In pixel pitches, we offer 5mm, 6.67mm, 8mm, and 10mm options making it ideal for a number of different applications. We offer right angles for corner dipslays and even custom designs as well.luminosity, lower power consumption, higher resolution, and higher visibility for LEDs, and will develop products to further improve large-scale displays. This is why we chose Nichia as one of our primary LED diode suppliers for our outdoor LED displays.
IP65
The front and rear protection level of the display reaches IP65, dustproof, waterproof and moisture-proof, features ensure the display still works normally in all kinds of complicated weather conditions. And the cabinets are made of aluminum-magnesium alloy, which has good heat dissipation performance, high temperature mitigation and corrosion resistant.

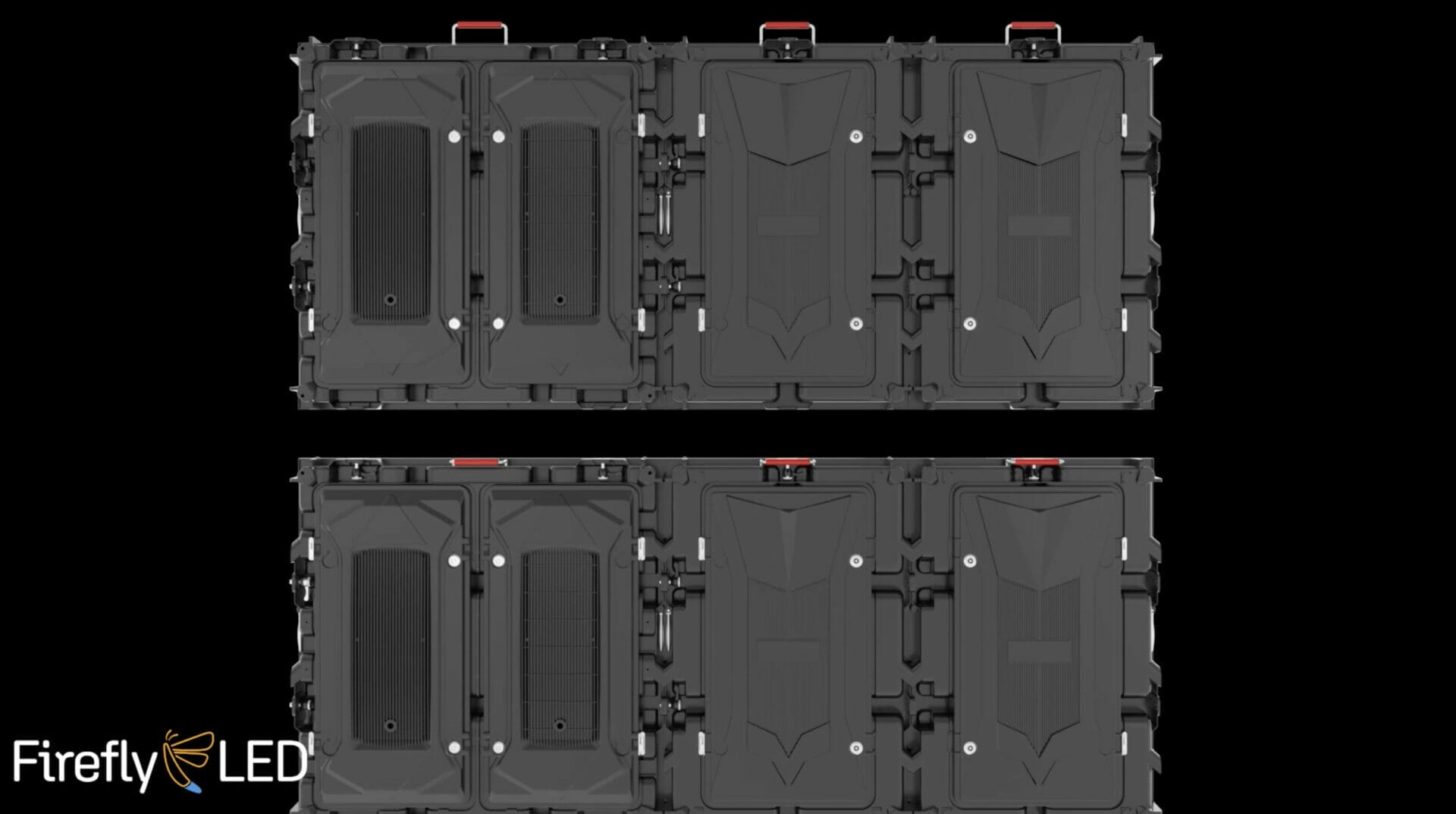

Front & Rear Access
The O Series features both front and rear access. This can simplify the installaltion process, and allow for a number of configurations, wether it is double sided, on the side of a building, on a pole, or a monument style LED Display. This also makes servicing the LED Display super easy.
Thin & Light
At about 65 pounds the lightweight/larger cabinets are easy to handle and less expensive to transport. This will certainly decrease your labor cost and installation times.
CAD Drawings: 3.15’ x 3.15’ (960mm x 960mm)
CAD Drawings: 4.2’ x 3.15’ (1280mm x 960mm)
CAD Drawings: 2.1’ x 3.15’ (640mm x 960mm)
| Specification | ||||
|---|---|---|---|---|
|
Pixel Pitch |
5 mm |
6.67 mm |
8 mm |
10 mm |
|
LED Type |
SMD 3 in 1, Gold Wire |
|||
|
Panel Dimension (W×H×D) |
37.8 in. x 37.8 in. / 960×960×120 mm |
12.6 in. x 12.6 in. / 320×320 mm |
||
|
Panel Resolution (W×H) |
64×32 px |
48×48 px |
120×120 px |
96×96 px |
|
Pixel Density |
40000 /m² |
22500 /m² |
15625 /m² |
10000 /m² |
|
Panel Weight |
67 lbs/30 kg |
|||
|
Avg. Power Consumption |
200 watts |
|||
|
Max Power Consumption |
650 watts |
|||
|
Brightness |
6500~8500 nits |
|||
|
Refresh Rate |
≥3840 Hz |
|||
|
Driving Method |
1/6 S |
1/8 S |
1/4 S |
1/2 S |
|
Gray Scale |
14~16 bit |
|||
|
Contrast Ratio |
2000 :1 |
|||
|
Access |
Front / Rear Access |
|||
|
Ingress Protection |
Front IP65 / Rear IP54 |
|||
|
Working Temperature |
-4°F~122°F |
|||
|
Storage Temperature |
-4°F~140°F |
|||
|
Power Supply |
AC 100-240 V |
|||
