M Series
- The mobile outdoor display for maximum flexibility.
Key Features
- Smart Module
- Energy Efficient
- Customizable
- High Gray Scale
- Ultra Light
- Fast Assembly
M Series Highlights
The most obvious advantage of the blackbody LED is its high contrast ratio. The higher the contrast ratio, the clearer and more vivid the display will be. It provides deeper blacks and more accurate colors throughout the spectrum. It is much less reflective as well, making it ideal for outdoor or brightly lit environments.

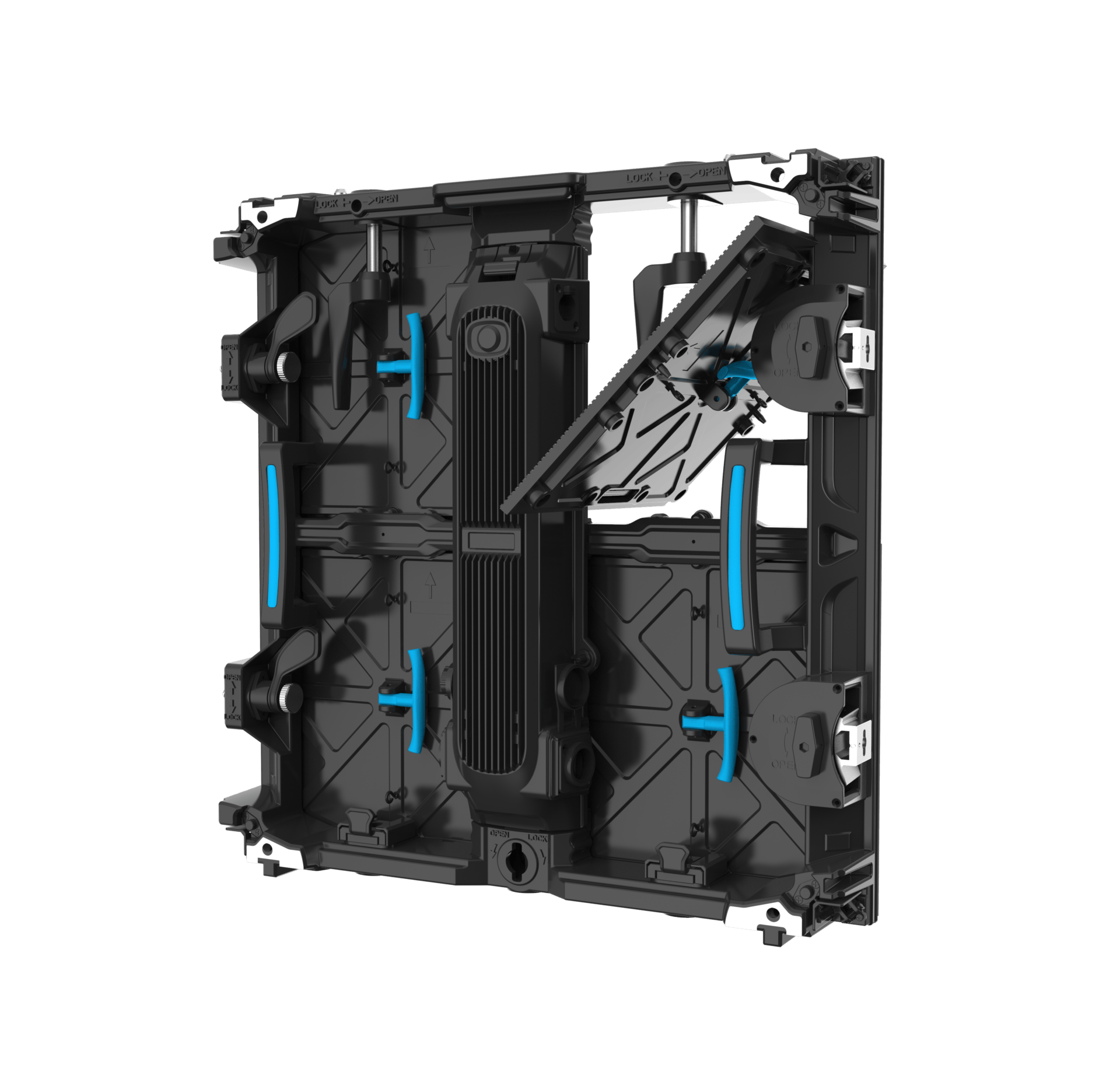

The M Series features ergonomic handles and an automatic locking system allowing an individual to easily assemble the display. The LED modules are front or rear serviceable, and the power/data box can be removed with one click. It features a patented structural frame with corner protection.
The M Series utilizes Common Cathode Technology. This is a much more efficient way of delivering power to the individual colors: Red, Green, and Blue. Each color has different voltage requirements, and with Common Cathode we can control the amount of voltage that is delivered. This provides up to 75% energy savings, and allows us to achieve a much brighter display
The M Series allows you to create curved or even circular LED Displays. The Radian Connector can adjust between ±6°, ±3°, 0°, and even allow for 90°corners.
Build Your M Series LED Display
We’ve built a custom LED screen builder that allows you to build out your display and get the exact specs and price estimate, instantly!
Specs from the M Series
A Series
B Series
C Series
Smart Interactive Display
E Series
Flyer Series
M Series Indoor
O Series
OHD Series
M Series Outdoor
| Specification | M3955O | M48550 | ||
|---|---|---|---|---|
|
Pixel Pitch |
3.9 mm |
4.8 mm |
||
|
LED Type |
SMD1921, Gold Wire |
|||
|
Panel Dimension (W×H×D) |
19.69 in. x 19.69 in. / 500×500 mm |
|||
|
Panel Resolution (W×H) |
128×128 px |
104×104 px |
||
|
Pixel Density |
102400 /m² |
65536 /m² |
||
|
Panel Weight |
19.8 lbs |
|||
|
Avg. Power Consumption |
60 watts |
|||
|
Max. Power Consumption |
150 watts |
|||
|
Brightness |
5000 nits |
|||
|
Refresh Rate |
3840Hz |
|||
|
Gray Scale |
16 Bit |
|||
|
Access |
Front /Rear Access |
|||
|
Ingress Protection |
IP65 |
|||
