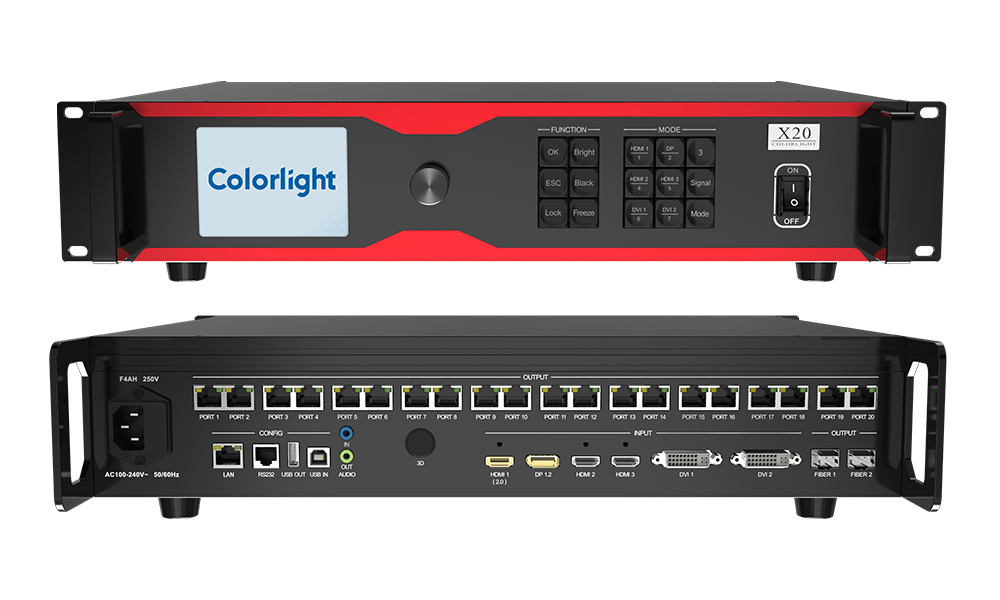

Colorlight X20 Master Controller

Screen Builder Specs
Product Page Specs





  • Supports various digital signal ports, including 1 1×DP 1.4, 1×HDMI2.0, 2×HDMI1.4, 2×DVI
  • Supports input resolutions up to 4096×2160@60Hz
  • Loading capacity: 11.8 million pixels, maximum width: 16,384 pixels, maximum height: 8192 pixels
  • Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution
  • Supports seven-picture displays, the location and size can be adjusted freely
  • Supports HDCP 2.2
  • Dual USB2.0 for high speed configuration and easy cascading among controllers
  • Supports brightness and chromaticity adjustment
  • Supports improved gray-scale performance at low brightness
  • Compatible with all receiving cards, multifunction cards, and optical fiber converters of Colorlight
