C Series
- Our transparent LED display panel, featuring the latest in hardware and design advancements.
Key Features
- Energy Efficient
- Customizable
- Ultra Light
- High Brightness
- Transparency
C Series Highlights

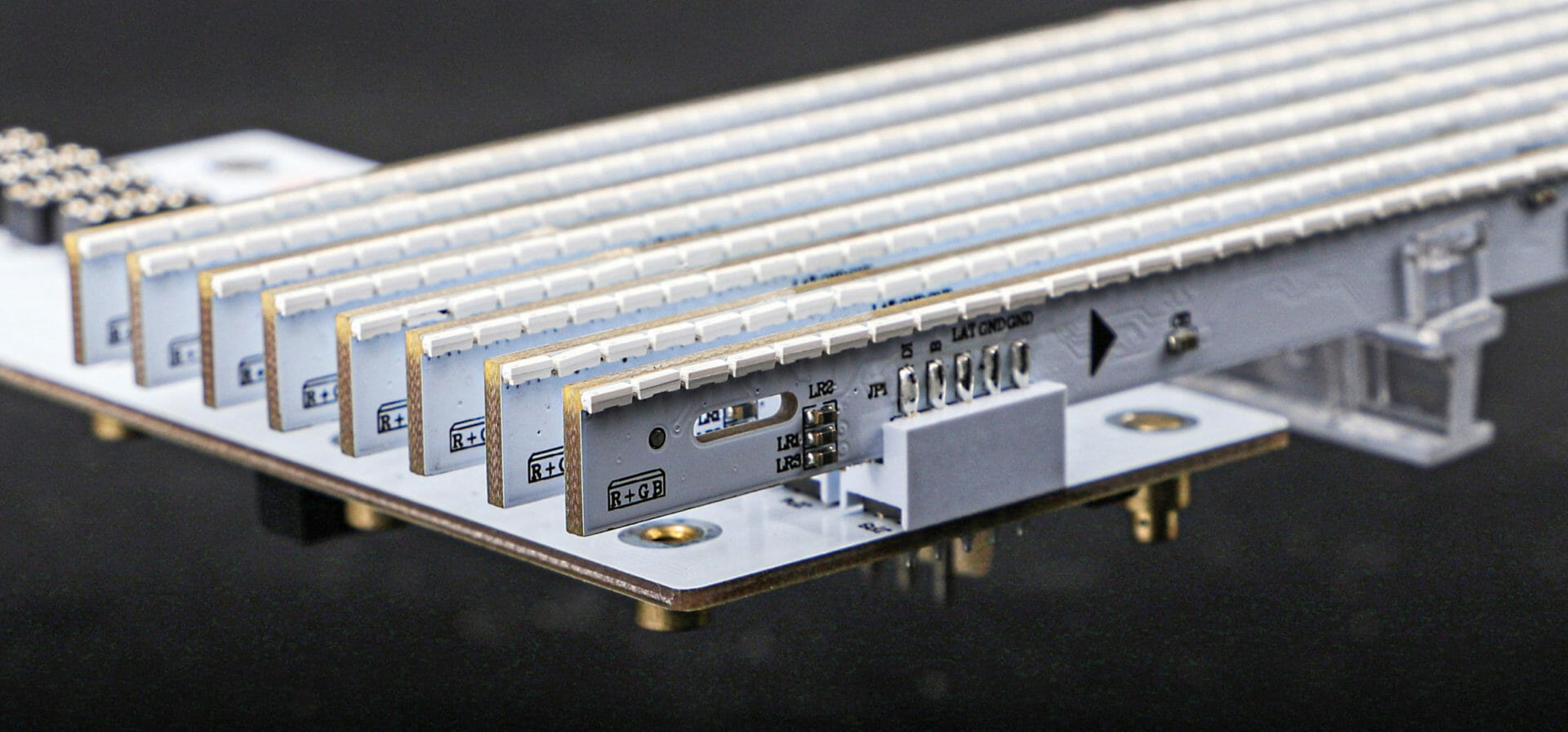

The C Series utilizes a LED diode that is mounted parallel with the PCB Board. Essentially, the LED diode is mounted to the side, and the PCB board is turned. This allows for maximum transparency and creates a much nicer visual effect.

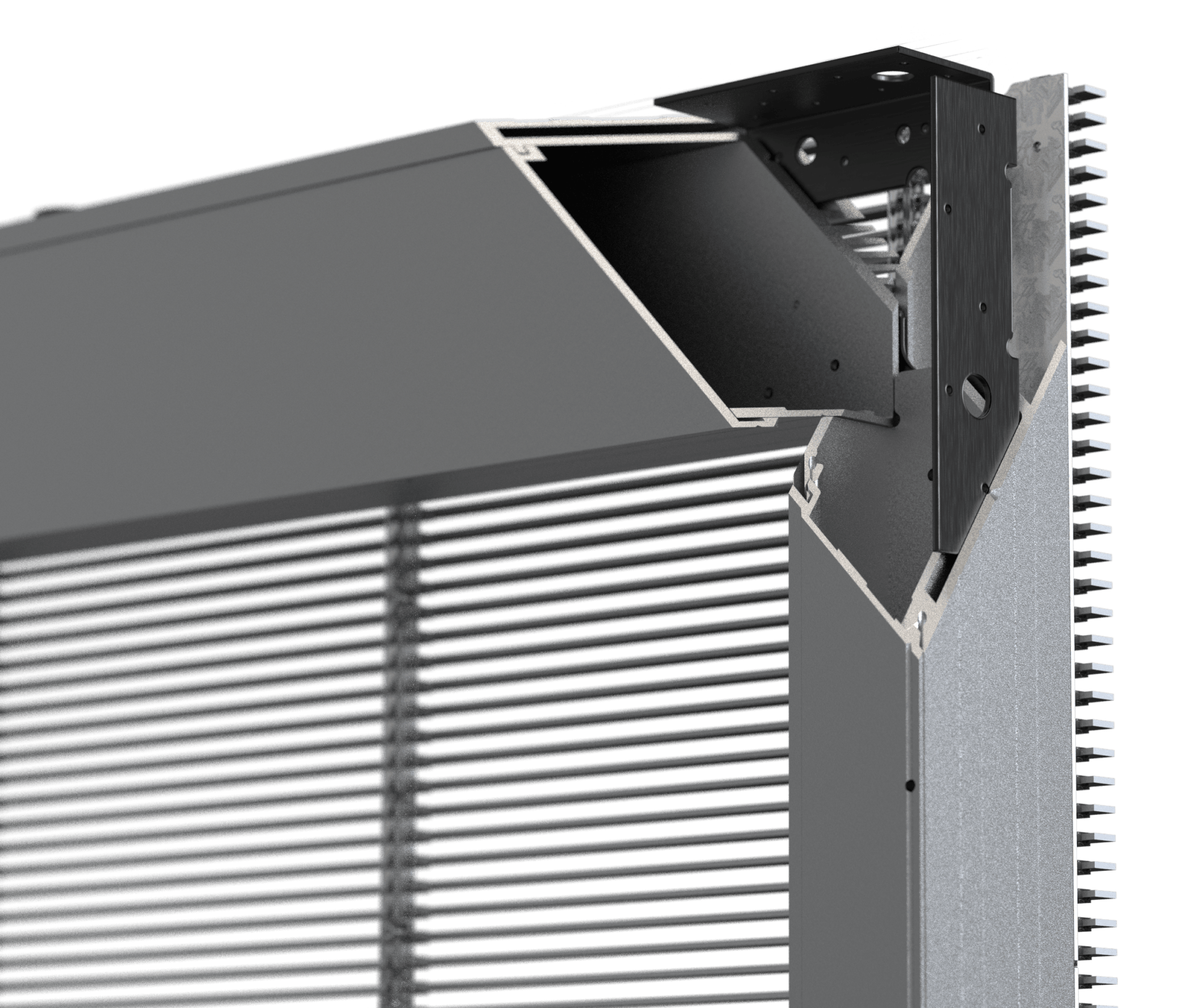

The structure is made up of two layers of aluminum profile, with stiffener and embedded corner braces. The design enhances the connection rigidity and overall strength of the product, allowing you to create very large LED displays.
Each module measures 1000mm wide by 250mm high, with light bars, HUB, receiving card and other components, designed for convenient and effective serviceability.

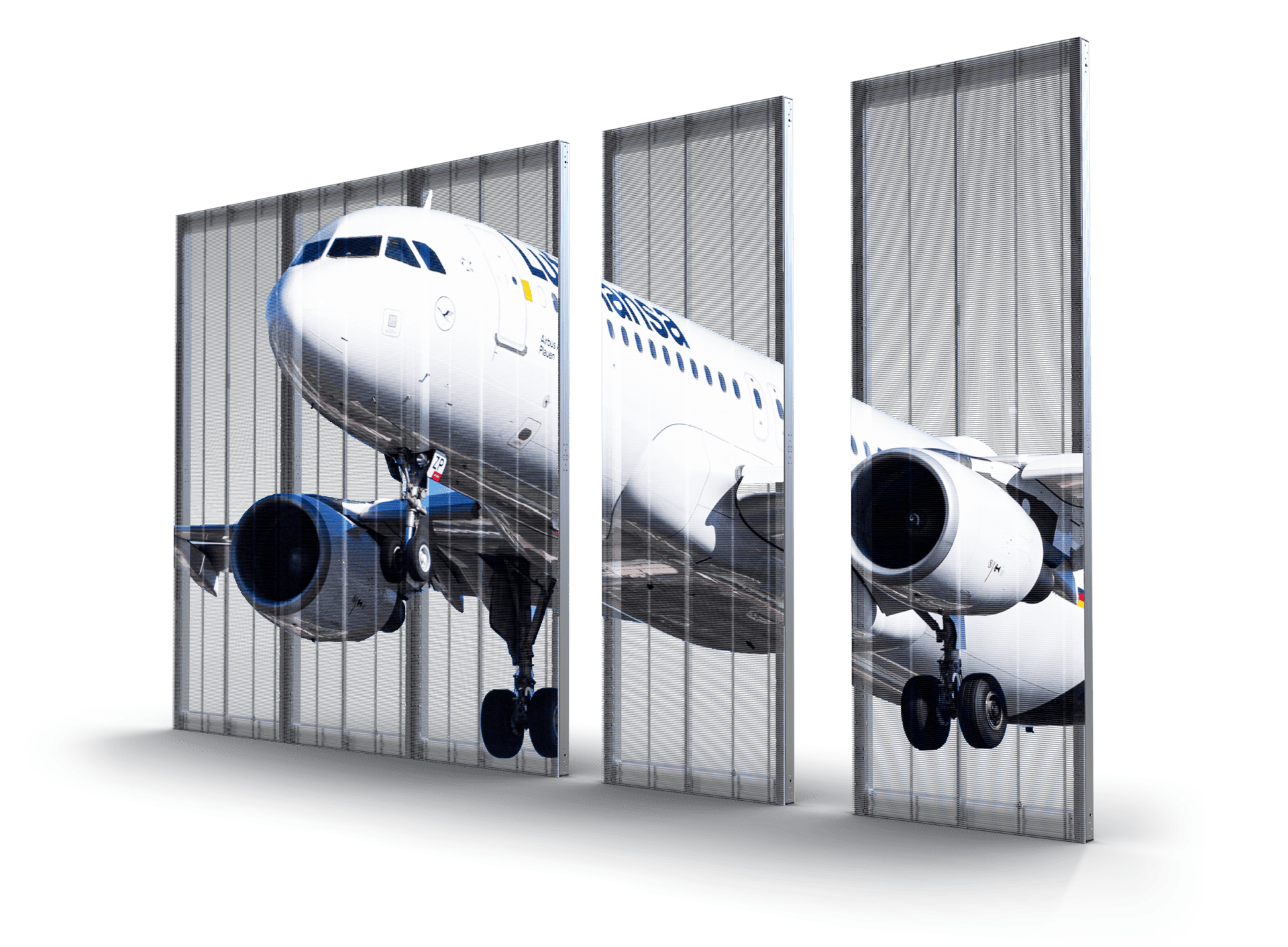

The C Series is versatile in different settings. It can be used as an invidual E-Poster with external players, or mutilple units can be put together to form a larger LED Display.
Buy the C Series Display
Specs from the C Series
A Series
B Series
C Series
| Specification | C397813SD | |||
|---|---|---|---|---|
|
Pixel Pitch |
3.91×7.82 mm |
|||
|
LED Type |
SMD 3 in 1, Gold Wire |
|||
|
Panel Dimension (W×H×D) |
3.28×9.84×0.28 ft / 1000×3000×85 mm |
|||
|
Panel Resolution (W×H) |
256×384 px |
|||
|
Pixel Density |
32768 /m² |
|||
|
Panel Weight |
3.07 lbs/ft² |
|||
|
Avg. Power Consumption |
675 watts |
|||
|
Max Power Consumption |
1950 watts |
|||
|
Brightness |
≥ 5000 nits |
|||
|
Refresh Rate |
≥ 1920 Hz |
|||
|
Driving Method |
1/8 S |
|||
|
Gray Scale |
≥ 14 bit |
|||
|
Contrast Ratio |
0~255 |
|||
|
Access |
Rear access |
|||
|
Ingress Protection |
IP20 |
|||
|
Working Temperature |
14°F~-40°F |
|||
|
Storage Temperature |
40°F~-112°F |
|||
|
Power Supply |
AC 100-240 V |
|||
|
Transparency Rate |
65% |
|||
