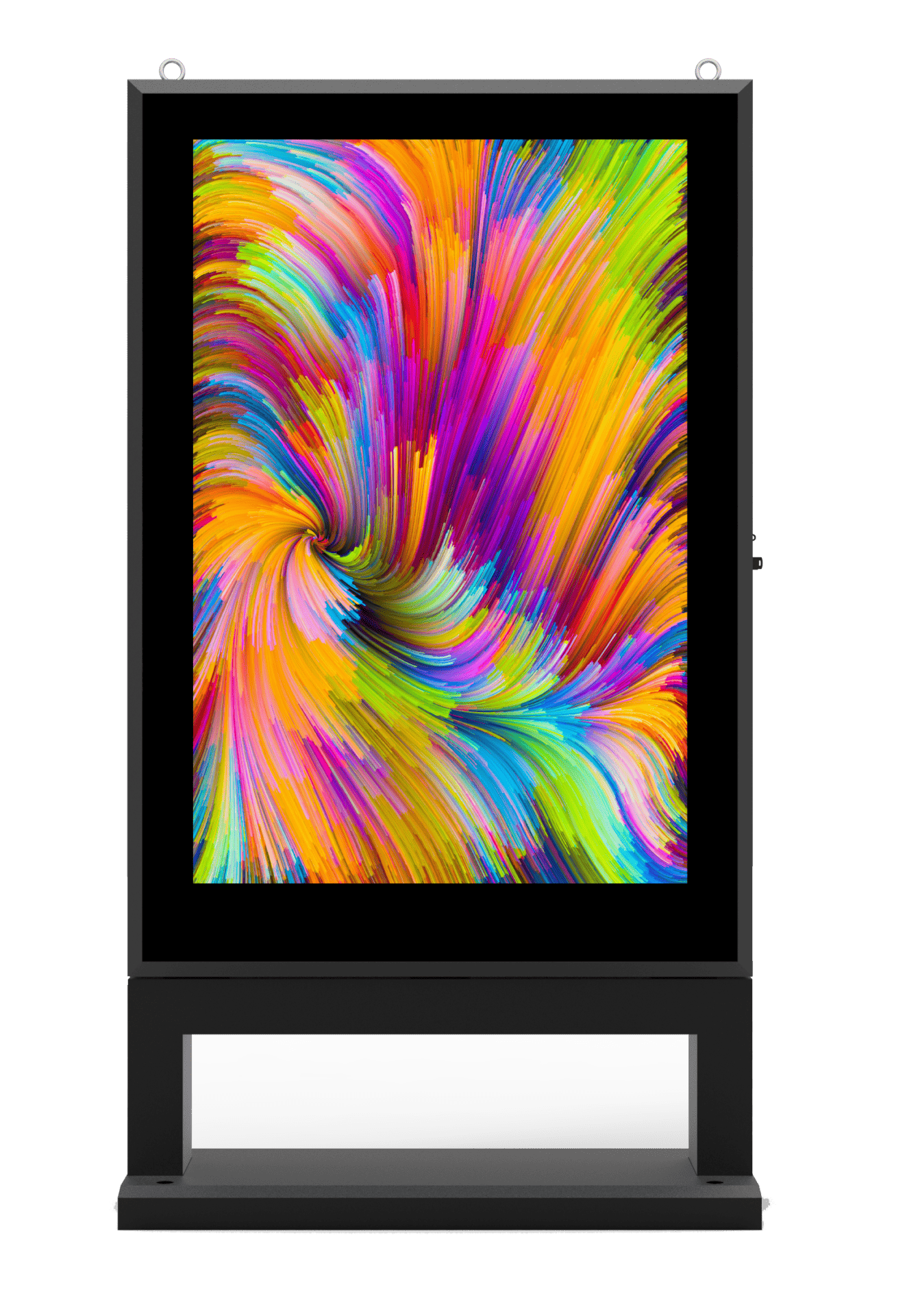

Lightning Series
- Combining a remarkable presence in a sleek, compact LED display.
Key Features
- Armor Coating
- Smart Module
- Front Access
- Energy Efficient
- High Gray Scale
- Ultra Light
- IP65
Lightning Series Highlights

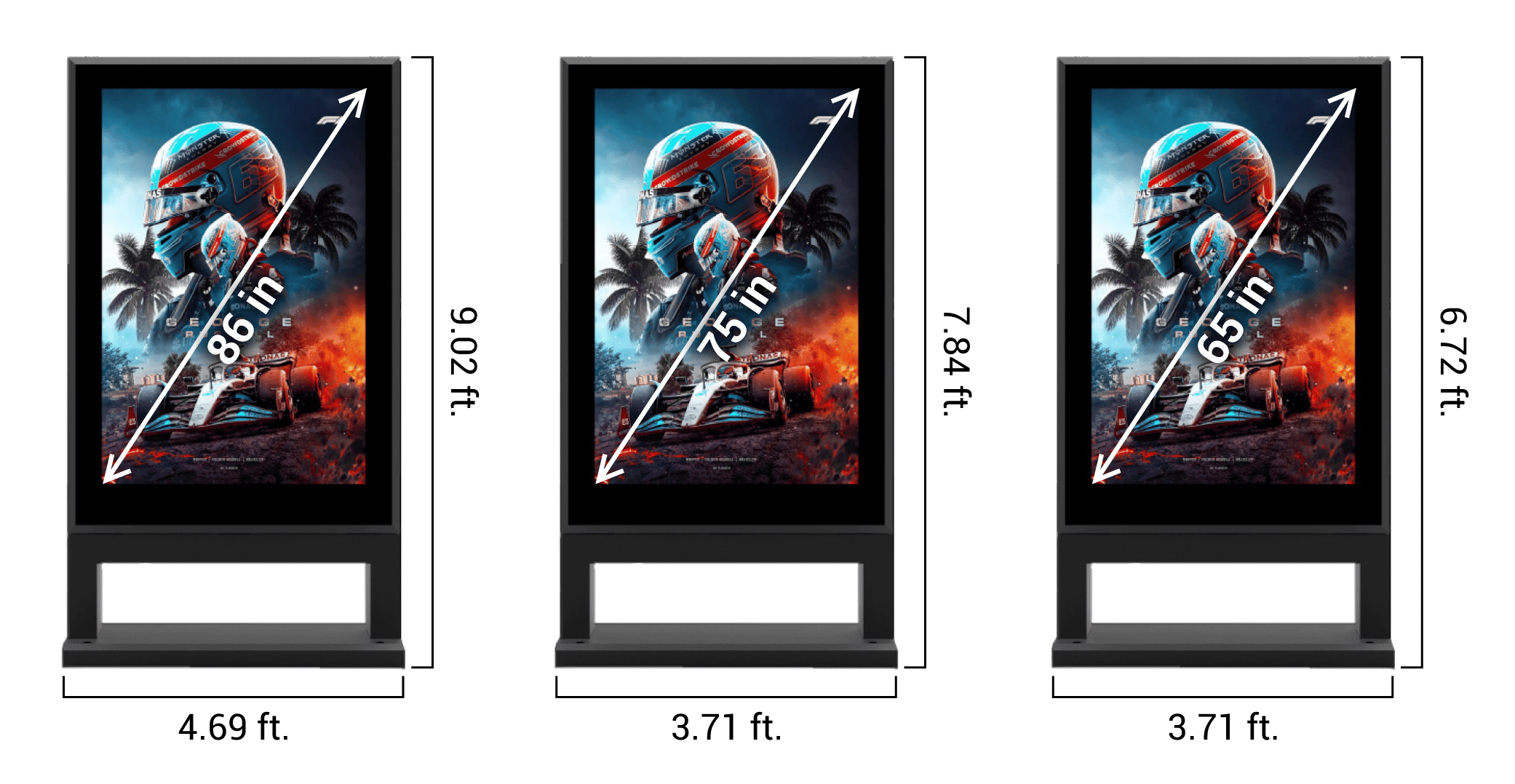

We offer the Lightning Series in 3 different sizes – 65”, 75”, and 86” to cater to different scenarios and environments.
The Lightning Series is built to be durable so you have peace of mind knowing that it can handle virtually any weather conditions. With a patented armor coating technology and additional access door, this gives the product much more protection against the elements.

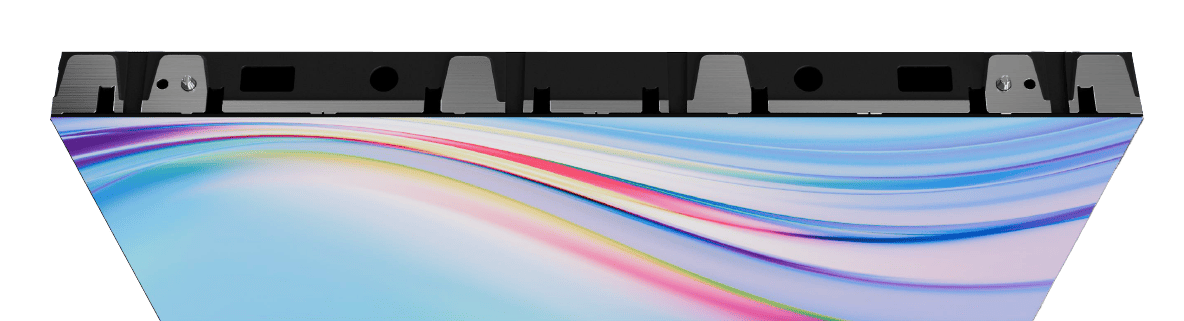

The Lightning Series has a 170 degree viewing angle meaning your content will achieve the most impactful views with no change in the display at any angle. Plus, it features the first outdoor flip chip display ever for optimal heat dissipation and providing up to 4000 nits of brightness. An astonishing 10,000:1 contrast ratio and over a billion colors presented with exceptional accuracy and dynamic range.
This display has the latest Android operating system built-in, featuring rich applications and functionality that you are already used to and know.
Buy the Lightning Series Display
Specs from the Lightning Series
A Series
B Series
C Series
Smart Interactive Display
E Series
Flyer Series
M Series Indoor
O Series
OHD Series
M Series Outdoor
Lightning Series
| Specification | ||||||
|---|---|---|---|---|---|---|
|
Screen Size |
65″ |
75″ |
86″ |
|||
|
Pixel Pitch |
1.5 / 1.8 / 2.5 mm |
1.5 / 1.8 / 2.5 mm |
1.5 / 1.8 / 2.5 mm |
|||
|
Panel Dimension (W×H×D) |
3.71 x 6.73 x 0.82 ft |
3.71 x 7.84 x 0.82 ft |
4.69 x 9.02 x 0.82 ft |
|||
|
Panel Resolution (W×H) |
576×864 / 576×1080 / 768×1080 |
480×720 / 480×900 / 640×900 |
360×540 / 360×675 / 480×675 |
|||
|
Panel Weight |
410 to 487 lbs. |
496 to 595 lbs. |
617 to 749 lbs. |
|||
|
Max Power Consumption |
840 watts |
1070 watts |
1848 watts |
|||
|
Avg Power Consumption |
260 watts |
325 watts |
562 watts |
|||
|
Brightness |
≤ 4000 nits |
|||||
|
Contrast Ratio |
5000:1 |
|||||
|
Viewing Angle |
170° |
|||||
|
Refresh Rate |
≤ 3840HZ |
|||||
|
Access |
Front Access |
|||||
|
Ingress Protection |
IP65 |
|||||
|
Working Temperature |
-4°F – 140°F |
|||||
|
Storage Temperature |
-22°F – 158°F |
|||||
|
Working Humidity (RH) |
10%~ 90% RH |
|||||
|
Working Voltage |
AC 100-240V |
|||||
|
Operation System |
Android |
|||||
