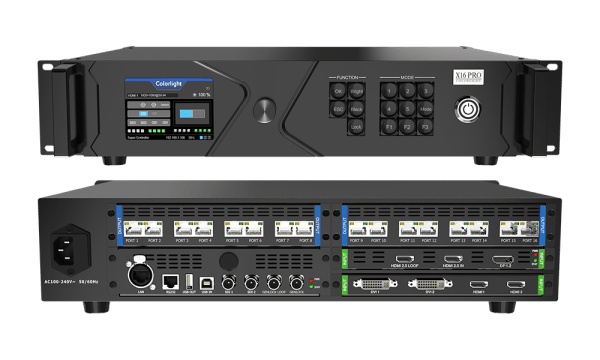

Colorlight X16 Pro Master Controller

Screen Builder Specs
Product Page Specs





  • Supports various digital signal ports, including 1×HDMI 2.0, 4×DVI, 2×SDI
  • Supports input resolutions up to 4096×2160@60Hz
  • Loading capacity: 8.88 million pixels, maximum width: 8192 pixels, maximum height: 4096 pixels
  • Outputs: 16xGigabit Ethernet ports
  • Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution
  • Supports seven-picture displays, the location and size can be adjusted freely
  • Supports HDCP 2.2
  • Dual USB2.0 for high speed configuration and easy cascading among controllers
  • Supports brightness and chromaticity adjustment
  • Supports improved gray-scale performance at low brightness
  • Compatible with all receiving cards, multifunction cards, and optical fiber converters of Colorlight
