Sending Controllers
What are Sending Controllers?
Unsure what an LED sending controller is used for? An LED sending controller is an electronic device used to process and send content to your LED video wall. They contain the various inputs, from HDMI, DVI to USB, where you control the display and it’s content.
Firefly LED uses only the highest quality sending controllers, to ensure that every display looks and performs at the highest quality, with ease of use and compatibility.
Types of Sending Controllers
The sending controllers that Firefly LED utilizes for all of our LED video wall and displays are provided by the Colorlight brand. A proven product in the industry, these sending controllers can support 4k, Windows or Mac compatibility, advanced calibration, and more. Understand the role of sending controllers in managing LED displays.
Colorlight X20
- Input connectors: 1×DP 1.4, 1×HDMI2.0, 2×HDMI1.4, 2×DVI
- Loading capacity: 13 million pixels, maximum width: 16384 pixels, or maximum height: 8192 pixels
- Input resolution: up to 4096×2160@60Hz, supporting customized setting
- Output connectors: 20× Gigabit Ethernet port, 2×10G optical fiber port
- Support video source switching, cropping, splicing and scaling
- Support up to 6 windows, of which the location and size can be freely adjusted
- Separate audio input and output
- HDCP compliant
- Brightness and color temperature adjustment
- Better gray at low brightness
- Compatible with all series of receiver cards, multifunction cards and fiber converters of Colorlight

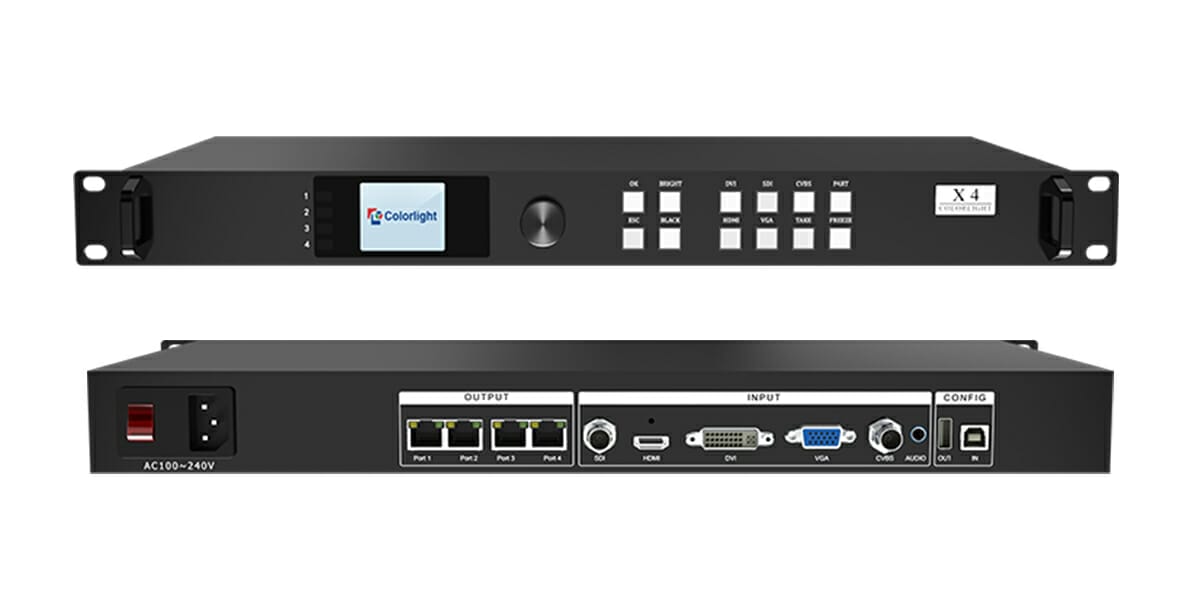

Colorlight X4
- Video input ports including SDI×1, HDMI×1, DVI×1, VGA×1, CVBS×1
- Supports input resolution up to 1920×1200@60Hz
- Loading capacity: 2.6 million pixels; Maximum Width: 4096 pixels; Maximum height: 2560 pixels
- Supports arbitrary switching of video input, and the image can be zoomed freely
- Dual USB2.0 for high speed configuration and easy cascading
- Supports splicing and cascading among several controllers with synchronization strictly
- Supports brightness and chromaticity adjustment
- Supports improved gray-scale at low brightness
- Supports HDCP1.4
- Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.

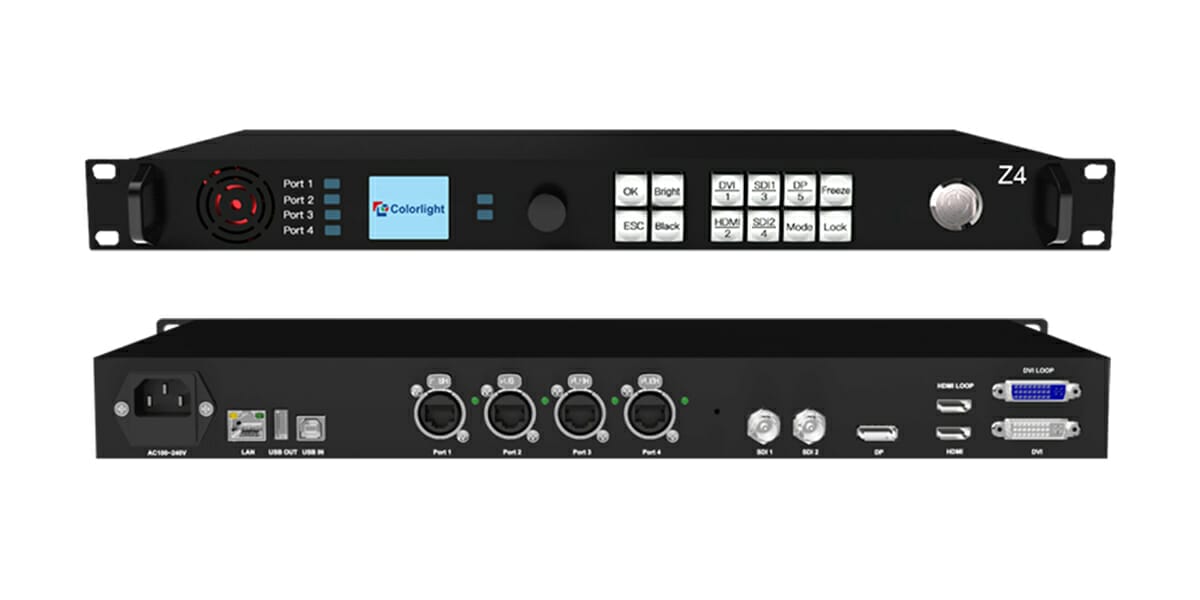

Colorlight Z4
- Video input ports including 1×HDMI(with loop), 1×DVI(with loop), 2×SDI, 1×DP;
- Input resolution up to 1920×1200@60Hz;
- The input images can be scaled according to the screen resolution;
- Supports PIP function, the location and size can be adjusted freely;
- Supports 10bit HD video source;
- Loading capacity: 2.3 million pixels; Maximum Width: 4096 pixels, Maximum Height: 4096 pixels;
- Supports splicing and cascading among several controllers with synchronization strictly;
- Supports brightness and chromaticity adjustment, color gamut transformation;
- Supports zero latency of sending;
- Supports improved gray-scale at low brightness;
- Supports HDCP1.4;
- Compatible with all receiving cards , multifunction card, optical fiber converters of Colorlight.

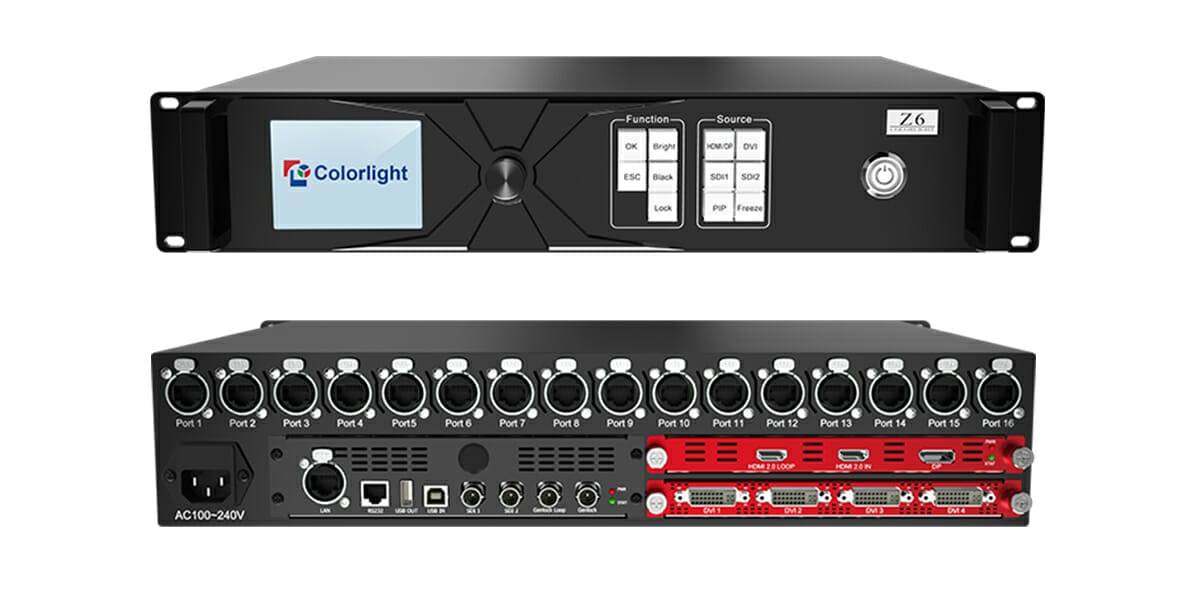

Colorlight Z6
- Video input ports including SDI×2, HDMI2.0×1, DVI×4;
- Supports input resolution up to 3840×2160@60Hz;
- Loading capacity: 8.3 million pixels, maximum width: 8192 pixels,maximum height:4096 pixels;
- Supports HDR；
- Supports 8,10bits;
- Low latency;
- The input images can be spliced and scaled according to the screen resolution;
- Supports three PIPs, the location and size can be adjusted freely;
- Supports splicing and cascading among several controllers with synchronization strictly;
- Supports brightness and color temperature adjustment;
- Supports better gray at low brightness;
- Supports HDCP2.2；
- Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.

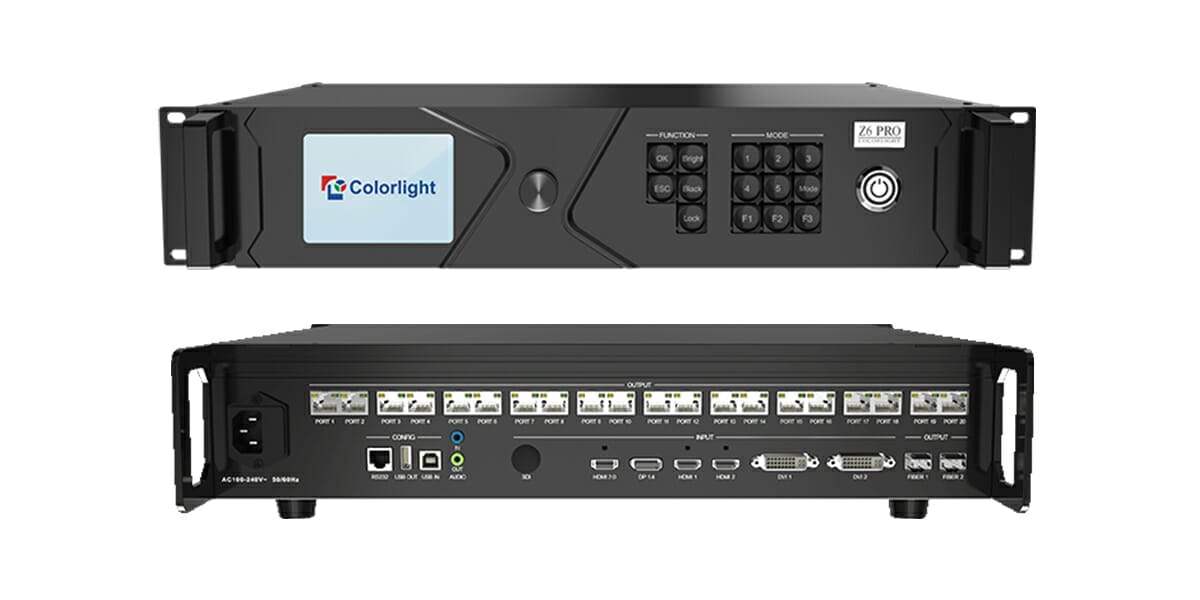

Colorlight Z6 Pro
- Supports 4 pcs 4K input board, up to 4096×2160@60Hz resolution per board；
- Supports 3 types of optional 4K input boards, including HDMI/DP, DVI×4, SDI×4;
- 4 10G fiber output ports, loading capacity up to 8847360 pixels, maximum width/height: 8192 pixels;
- Low latency processing;
- Supports 16 PIP layers. The location and size can be adjusted freely;
- Supports video source switching, splicing, cropping and scaling;
- Supports HDR;
- Supports 3D video and display;
- Improved gray-scale at low brightness;
- Hue, saturation, contrast adjustment;
- Supports USB, LAN and RS232 control；
- Supports Art-net control
LED Screen Panels
If you’re looking into sending controllers, but need LED screen panels to create the perfect combination for a display, check out some of our products below. All of our LED screen panels work seamlessly with the sending controllers from Colorlight, however you need to be sure you’re choosing the right sending controller for the right LED screen panel to optimize your content. Reach out to our team to learn more about which sending controller is best.
A Series
The A Series is our premier indoor LED product line. This series is a fine pitch display with the latest advancements in LED video wall technology.
B Series
The B Series is a more economical indoor LED video solution, packed with many features and SMD LED Diode Technology.
Contact Us
If you have a question about LED Sending Controllers, please submit the form below and an expert from the Firefly LED team will be in touch.
